3-in-1 Transformer Testing System

3-in-1 Transformer Testing System Low Voltage+Safety+Impulse

Stock Status: 100 pcs
Delivery Status: 1-3 days
$0
Excluding Tax
pcs

Description

ดาวน์โหลดสเปค 9560_SPEC

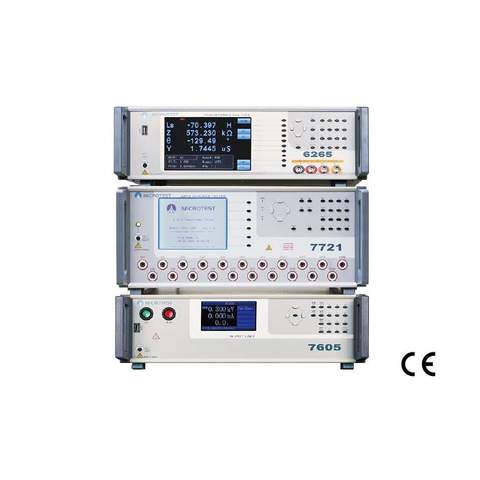

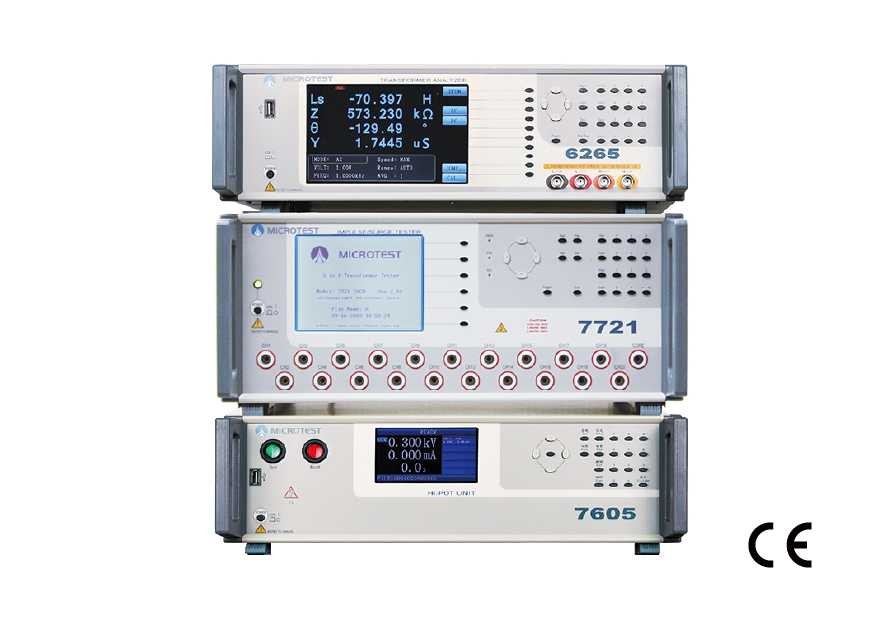

MICROTEST 3-in-1 Transformer Integrated Test System is a comprehensive solution that combines low-voltage electrical characteristics testing and safety compliance testing/Impulse Winding testing. It offers 20 testing channels and integrates low-voltage testing (including inductance, leakage inductance, resistance, capacitance, etc.) with AC/DC withstand voltage insulation testing (up to 5000V/6000V). It ensures efficient and convenient testing for transformer products. The impulse winding test uses non-destructive high-voltage pulse testing technology. It analyzes the damping attenuation waveform generated by L/C resonance to detect short-circuit defects between transformer coils or insulation layers.

To measure the inductance value of a transformer, you can use an LCR meter, which offers selectable test frequencies including 200kHz, 500kHz, and 1MHz. It supports software that allows connection to a PC, enabling the storage of test data.


Technical Data

Low Voltage Electrical Test
Hi pot/ Insulation Test
Impulse Test (Layer Short Circuit)
20 Channels
Test Frequency (200k/500k/1MHz)
AC Voltage Output 5000V
DC Votage Output 6000V
Insulation Resistance 12000MΩ
