Description
Download 2-in-1_6265+7631_SPEC

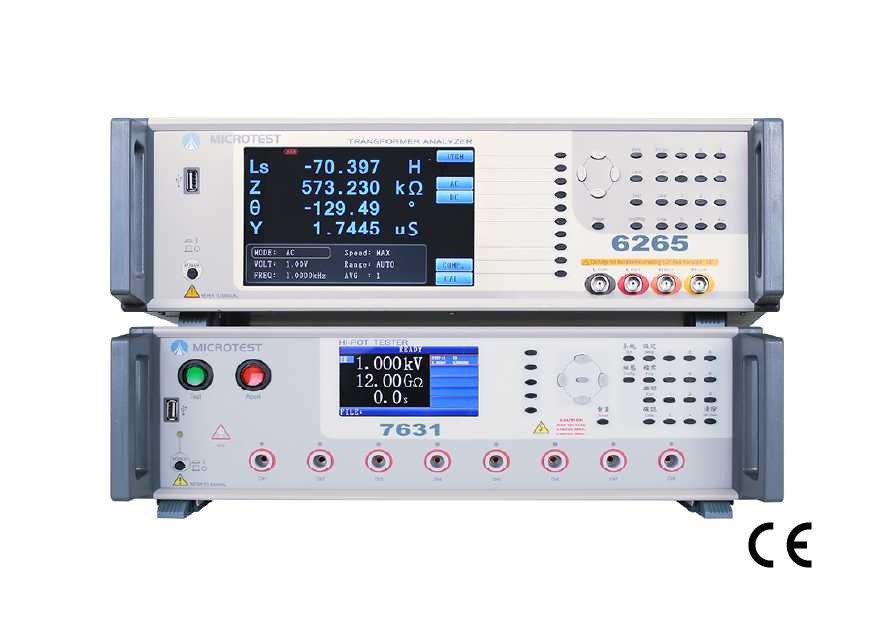

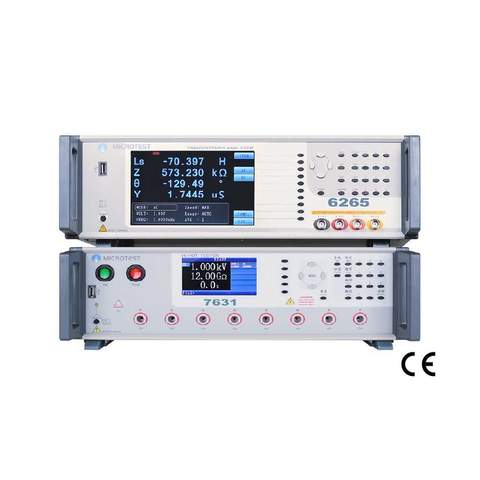

MICROTEST 2-in-1 Transformer Integrated Test System is a comprehensive solution that combines low-voltage electrical characteristics testing and safety compliance testing. It offers 20 testing channels and integrates low-voltage testing (including inductance, leakage inductance, resistance, capacitance, etc.) with AC/DC withstand voltage insulation testing (up to 5000V/6000V). It ensures efficient and convenient testing for transformer products.
To measure the inductance value of a transformer, you can use an LCR meter, which offers selectable test frequencies including 200kHz, 500kHz, and 1MHz. It supports software that allows connection to a PC, enabling the storage of test data.
Technical Data
Low Voltage Electrical Test | |
---|---|
Hi pot/ Insulation Test | |
20 Channels | |
Test Frequency (200k/500k/1MHz) | |
AC Voltage Output 5000V | |
DC Votage Output 6000V | |
Insulation Resistance 12000MΩ |
