DC Bias Current Source แหล่งจ่ายไบอัสกระแสตรง

DC Bias Current Source, when coupled with an LCR Meter or Impedance Analyzer, allows for the analysis of saturation characteristics in components such as inductors, coils, ferrite cores, and iron cores. It enables precise verification of magnetic saturation current (Isat) and temperature rise current (Irms).

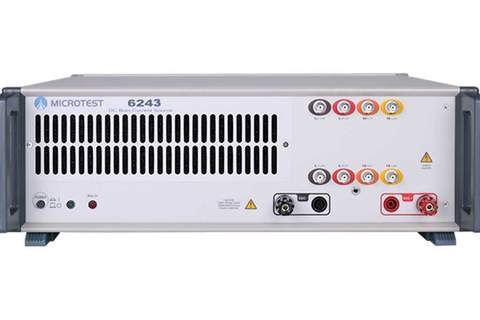

Model 6243: Single unit output of 40A, stackable up to 8 units, with a maximum combined output of 320A, and a frequency response of 100Hz-10MHz.

Model 6223: Single unit output of 20A, stackable up to 6 units, with a maximum combined output of 120A, and a frequency response of 100Hz-10MHz.

Model 6240: Single unit output of 40A, stackable up to 8 units, with a maximum combined output of 320A, and a frequency response of 100Hz-3MHz.

Model 6220: Single unit output of 20A, stackable up to 6 units, with a maximum combined output of 120A, and a frequency response of 100Hz-3MHz.

Model 6210: Single unit output of 10A, stackable up to 6 units, with a maximum combined output of 60A, and a frequency response of 100Hz-3MHz.
