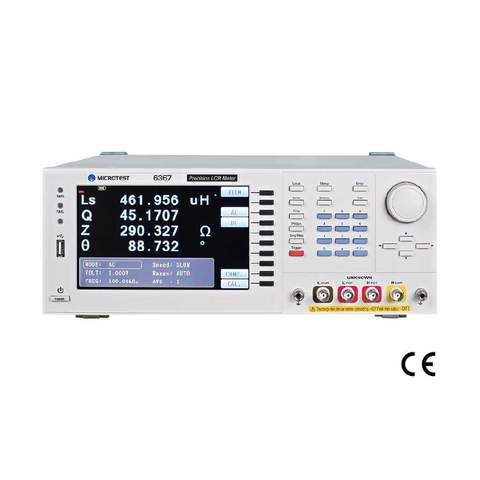

LCR Meter 6360 Series 6363/6364/6365/6366/6367
Stock Status:
100 pcs
Delivery Status: 1-3 days
Description
Download 6360 Series_SPEC
MICROTEST 6367 LCR Meter offers a frequency range of 10Hz to 1MHz. It can measure parameters such as |Z| (impedance), |Y| (admittance), θ (phase angle), X (reactance), R (series/parallel resistance), G (conductance), B (susceptance), L (inductance), D (dissipation factor), Q (quality factor), DCR (DC resistance), and C (capacitance). It supports communication interfaces such as RS-232, Handler, LAN, USB Host, GPIB, and can store test results and data via USB. With the optional PC connection software, it also enables sweep analysis capabilities. MICROTEST 6367 is an excellent choice for basic impedance measurements of electronic components.
Technical Data
| Test Frequency 10Hz-1MHz | |
|---|---|
| Output Impedance 100Ω | |
| Open Circuit/Short Circuit | |
| Meter Mode | |
| List Mode | |
| 7.0" TFT, 800×480 color screen | |
| Four Parameters Displayed Simultaneously | |
| Comparator/BIN | |
| Basic Accuracy ±0.05% | |
| Using Graphical Analysis by PC Link | |
| RS-232、Handler、LAN、USB Host 、Handler、GPIB |
