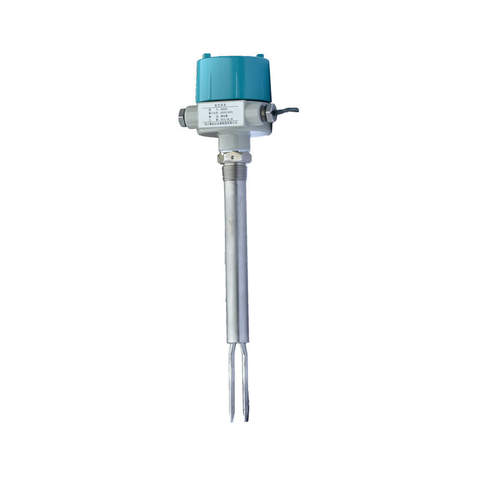

Vibrating Tuning Fork Level Switch

Vibrating Tuning Fork Level Switch สำหรับของเหลว อนุภาคของแข็งและผง

Stock Status: 1,000 pcs
Delivery Status: 30-40 days
Excluding Tax


Product Instructions

Tuning fork vibrating level switches, by resonant piezoelectric crystal to cause their vibration,When subjected to material damping. Drastically reduced the amplitude and the frequency and phase of significant change. These changes will be detected by the internal electronic circuits, and then after treatment, converted into a switching signal.

Product Features

It is practical and simple, reliable, and applicability;

Tuning fork and output were working condition, all with LED indication;

It may indicate that under customary adjustment;

A variety of input and output.

Technical Data

Fluid Liquid, Powder, Particle
Rod Length Standard: 250mm100-3000mm optional
Rod Material SS304, SS316L
Fluid temperature -40℃~130℃
Ambient temperature -20℃~70℃
Working pressure ≤2.5MPa
Fluid density Particle ≥ 0.1 g/cm3, Liquid ≥ 0.7 g/cm3
Particle diameter ≤1 0 mm
Signal Output Relay output, 3A/220VAC
Delay Time 1-60s Adjustable
Process Connection G1 " , G3/4" thread or Flange (Customize)
Enclosure IP65
