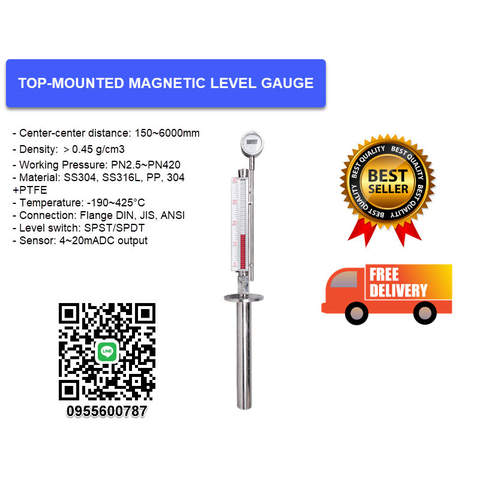

Top-Mounted Magnetic Level Gauge

Top-Mounted Magnetic Level Gauge

Stock Status: 1,000 pcs
Delivery Status: 30-40 days
Excluding Tax


Vacorda UHC top mounted magnetic level gauges. It is used in tanks that can not be mounted on the side surfaces. The movement of the float in the tank according to the filling rate of the tank; the level moves the float inside the bottle and the tank observation is provided mechanically.Like other systems, the top mounted magnetic level gauges can also be manufactured for the automation systems.

Working Principle

The UHC type magnetic liquid level gauge is made up of measuring body,dual-colored display cylinder, ruler, top&low flange,magnetic ball and transmitter (4-20mA). Based on buoyance principle, the magnetic ball in the body of the level gauge is up or down with the liquid level changing and makes dual-colored turning to show the level of medium. Each cylinder is with two-color axisymmetric structures.The distance of two cylinders is 10mm. Red side of display cylinder indicates liquid and white side display cylinder indicates air. Besides measuring liquid level,it also could measure the interface of the two kinds of liquid.

Product Feature

1. Level indicator magnetic type has simple structure, good stability and reliability.

2. Independent of medium’s physical and chemical states such as conductivity, dielectric constants, foam etc.

3. Appliable for all kinds of medium environment such as corrosive, toxic and explosive one.

4. Interface measurement or level measurement of 2 kinds of medium with different density.

5. Two-wire 4~20mADC signal output, 0.8"or 0.56” LED digital display.


Vacorda UHC series bypass level indicator magnetic type is widely used in petroleum, chemical industry, oil field, pharmaceuticals industry, food, wine industry etc.

1.All steam and hot water boilers

2. Waste water systems

3.Filling and unloading containers

4.All chemical and petrochemical tanks

5.Tanks for petroleum and petroleum products

6.Oil boilers

7.Diesel fuel tanks and generator sets

8.Submarine, helicopter and ship fuel tanks.


1.Continuous and easy monitoring

2.Sealing construction

3.Requested length and connection manufacturing

4.Ability to work in different densities

5.Manufacturing according to various installation types

6.Long life time

7.Easy maintenance

8.Up to 6 meters can be manufactured in one piece.

9.Works up to 400 °C in PN 10/16/25/40(Opt.) pressure class

Technical Data

Center-center distance 150~6000mm
Density >0.45 g/cm3
Working Pressure PN2.5~PN420(x0.1MPa)
Material SS304, SS316L, PP, 304+PTFE
Temperature -190~425°C
Process Connection Flange DIN, JIS, ANSI
Upper End Welding cap (standard) For more, see note 2
Lower End Flange cover (standard) For more, see note 3
Optional-limit level switch SPST/SPDT 60W 1A 250VAC(standard)
Optional-level sensor 4~20mADC output(standard)
