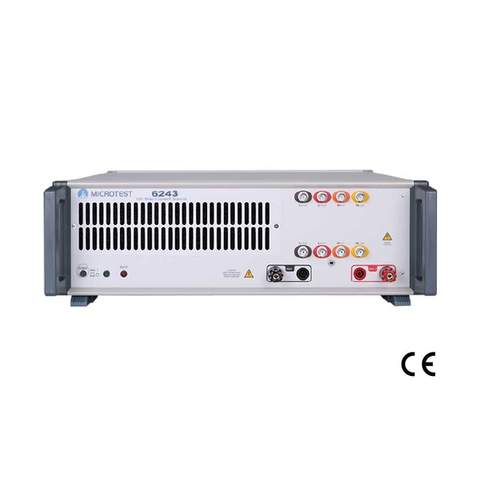

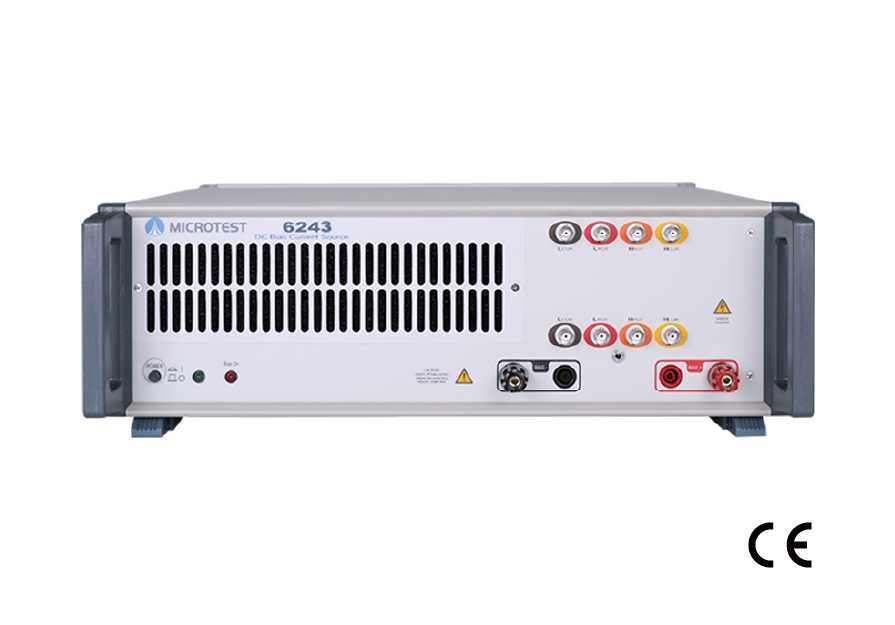

The 6243 DC Bias Current Source is designed for performing magnetic saturation current (Isat) and temperature rise current analysis (Irms) on inductors. It provides a single output current of 40A. To conduct such analysis, you have the option to purchase the system along with the 6632 Impedance Analyzer or the 6355/6356 LCR Meter.
If you choose the 6632 Impedance Analyzer, it has a frequency range of 100Hz-10MHz and can handle a maximum output current of 320A using 8 units.For the 6355 LCR Meter, it has a frequency range of 100Hz-200kHz and can handle a maximum output current of 320A using 8 units.The 6356 LCR Meter has a frequency range of 100Hz-500kHz and can handle a maximum output current of 320A using 8 units.
Technical Data
Max current output | 320A (8 unit) |
Each individual unit can output DC Bias Current 40A | |
---|---|
Option LCR Meter/Impedance Analyzer |
