    Recommended center-center distance: 300, 500, 800, 1100, 1400,1700,2000mm (custom made)

    Indicate mode: Single color, bicolor (red as vapor phases, green as liquid)

    Material: Carbon steel, 304, 316L, 1Cr18Ni9Ti, 0Cr18Ni9, 304 with PTFE lining

    Nominal pressure: PN6-PN100(×0.1MPa), 304 +PTFE≤PN40, PP≤100℃

    Working temperature: Carbon steel ≤350℃, Stainless steel ≤450℃, 304+PTFE ≤200℃, PP≤100℃

    Drain valve: Drain needle valve (or customize)

    Vent valve: Vent needle valve (or customize)

    Process flange: DN20/RF HG/T 20592-09

    The heat steam interface: ZG1/2"male screw thread

    The heat steam pressure: ≤1.0Mpa

    Eclectic heating: Self-limiting temperature heating (unnecessary for anticorrosive type)

    Steel ball self-closing pressure: ≥0.3Mpa

    Power supply: 24V DC, 36V AC

    Environment temperature: -50~+80℃

    ส่งฟอร์มขอราคา sales.success.elec@gmail.com

    Product Parametersดาวน์โหลดแคตตาล็อก
    Product Parametersแบบฟอร์มขอใบเสนอราคา
Magnetic Float Level Switch สวิทช์ระดับแม่เหล็กลอย
Magnetic Float Level Switch สวิทช์ระดับแม่เหล็กลอย

Product Instruction

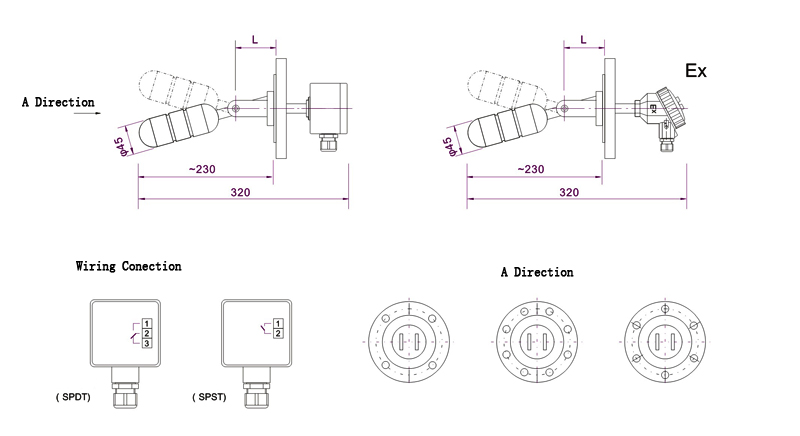

UQK side mounted magnetic float liquid level swith and pontoon level switch consist of reed and magnetic float ball, which is based on the floating principle that utilizes magnetic float ball to make the relevant reed close or open according to the height changing of the liquid level, thus controlling and measuring the liquid level.

Product Feature

1. No external power supply, passive output contact

2. Long life span, stable and reliable operation, easy installation, almost no maintenance

3. Independent of mediums’ physical and chemical status.

4. Intelligent magnetic float level swith is applied in all kinds of bad medium environment with density ≥0.5g/cm³.

5. Available for interface detection of mediums with two different densities.

6. Wide application range. Pressure 0~PN160 (max. up to PN320), temperature -40~+150 ° c;

7. At most 8 detecting points, delivering signal independently.

8. Anti-explosion design.

9. Customization.

Applications

UQK float ball level switch and pontoon level switch are made of different materials, and can be used in almost all strong and weak corrosion-resistant mediums and none corrosive mediums.
